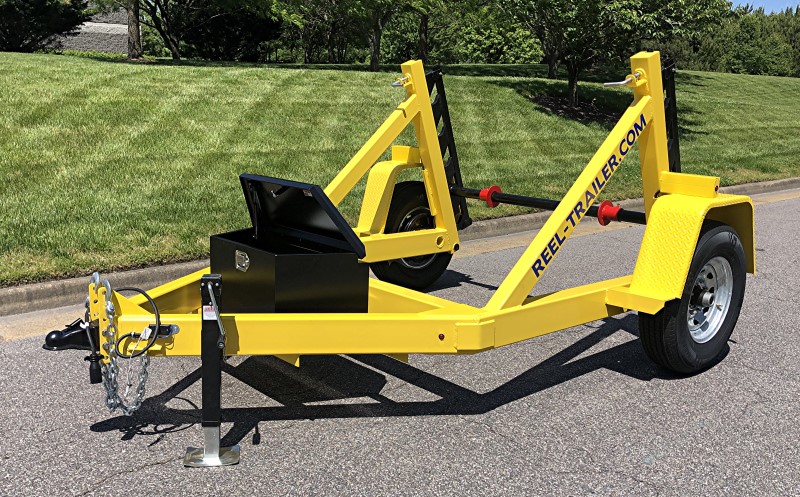

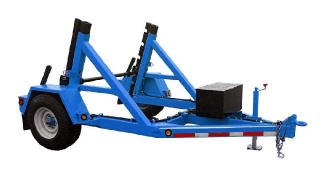

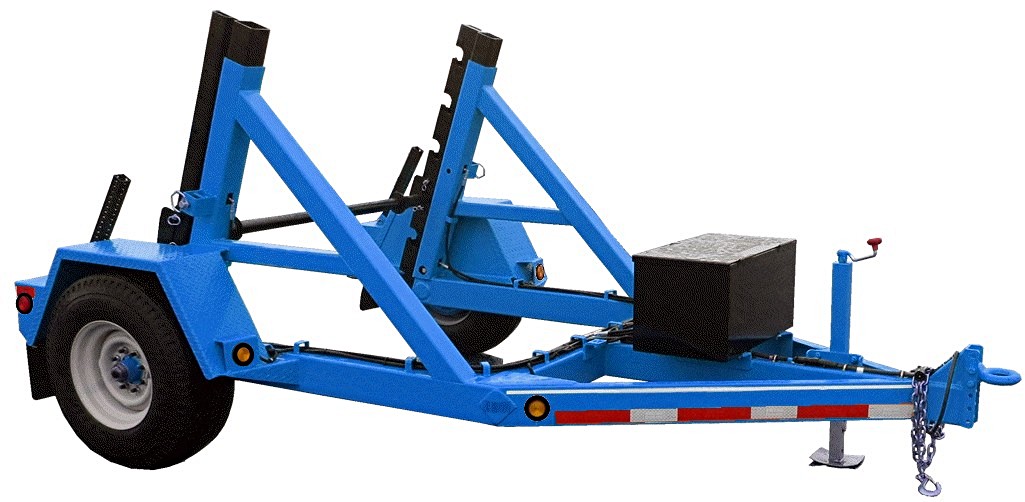

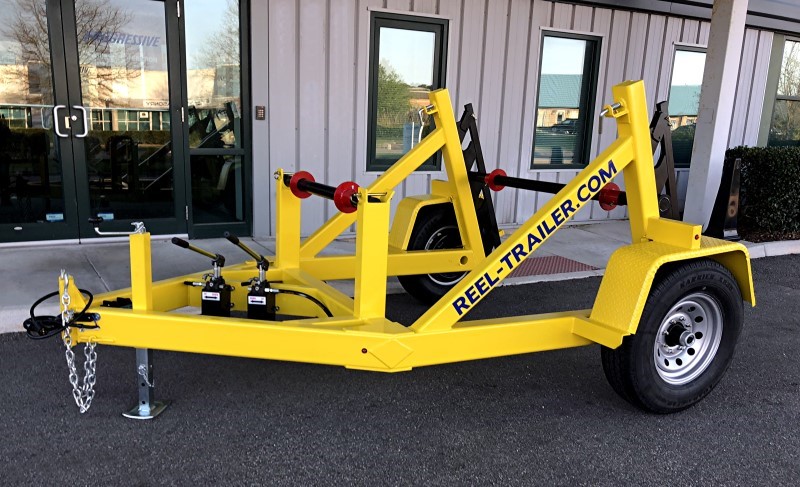

7,000lbs Hydraulic
Lift Reel Trailer |
$7,595.00 |
|
|
STANDARD FEATURES: |
|
• Open Reel Access in Rear for
Easy Access, Easy Loading & Low Center of Gravity |
|
• Solid 2-1/2” Spindle Bar with
Centering Locks (10,000lbs Rated) |
|
• Reel Locations Centered
Forward of Wheels for Proper Tongue Weight & Easy Loading |
|
• Multi-Pocket Spindle Bar
Hydraulically Adjusts a Variety of Reel Diameters Up to 120” &
66” Wide |
|
• Adjustable Height 3” Pintle
Ring |
|
• H.D. 16K Safety Chains |
|
• 7-Pin Electrical Plug |
|
• Top-Wind 7,000lb Tongue Jack |
|

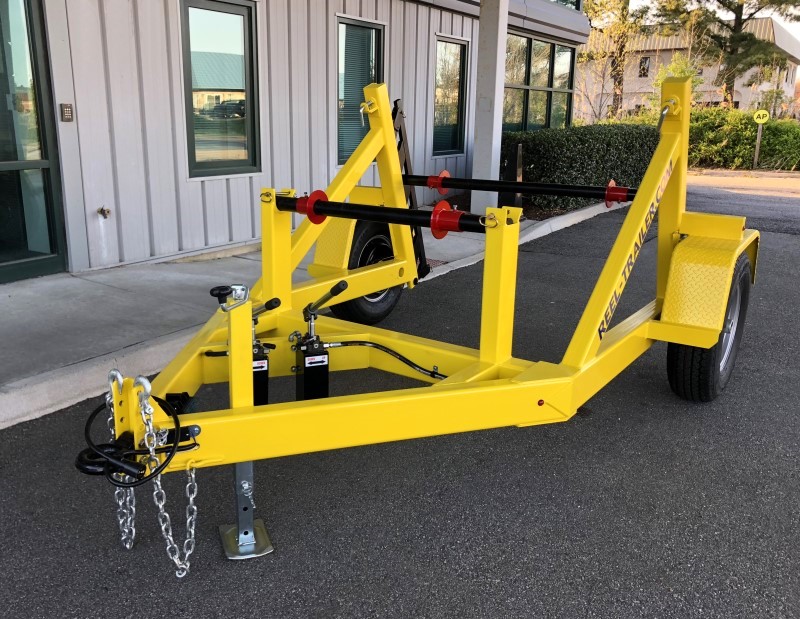

• Dual Manual Hydraulic
Pumps/Tank Assy & Lift Rams (For uneven terrain adjustment) |
|
• 7,000 Capacity Axle Spindles,
Hubs, Wheel Bearings, Tires |
|
• 12” Electric Brakes (Includes
Safety Breakaway Switch) |
|
• H.D. Steel Diamond Tread
Fenders |
|
•
1/4" Steel Main
Frame |
|
•
Built In
Axle Camber (Camber Reduces
Tire Wear) |
|
•
LED Lighting
on Rear and Sides |
|
•
License
Plate Holder & Light |
|
• ST/235/80
R16 Load Range "E" Tires |
|
•
Paint:
Safety Yellow (Other Colors
Available to Match your Vehicle or Company Colors) |
|
Options: |
|
• Front Mounted Spool
Holder (Strand/Tracer Wire Holder) |
$250.00 |
|
• 12V Electric Hydraulic
Pump Enclosed Enclosed in Tongue Mounted Storage Box |
$500.00 |
|
• Tongue Mounted Storage
Box |
$250.00 |
|
• Spare Tire/Wheel
Assembly
(ST/235/80/R16 - Load Range "E") |
$149.00 |
|
•
Additional Spindle Bar
with Locks
|
$149.95 |
|
|
|
|
| |
8,000lbs
Hydraulic Lift Reel Trailer |
$7,995.00 |
|
|
STANDARD FEATURES: |
|
• Open Reel Access in Rear for
Easy Access, Easy Loading & Low Center of Gravity |
|
• Solid 2-1/2” Spindle Bar with
Centering Locks (10,000lbs Rated) |
|
• Reel Locations Centered
Forward of Wheels for Proper Tongue Weight & Easy Loading |
|
• Multi-Pocket Spindle Bar
Hydraulically Adjusts a Variety of Reel Diameters Up to 120” &
66” Wide |
|
• Adjustable Height 3” Pintle
Ring |
|
• H.D. 16K Safety Chains |
|
• 7-Pin Electrical Plug |
|
• Top-Wind 8,000lb Tongue Jack |
|
• Dual Manual Hydraulic
Pumps/Tank Assy & Lift Rams (For uneven terrain adjustment) |
|
• 8,000 Capacity Axle Spindles,
Hubs, Wheel Bearings, Tires |
|
• 12” Electric Brakes (Includes
Safety Breakaway Switch) |
|
• H.D. Steel Diamond Tread
Fenders |
|
•
1/4" Steel Main
Frame |
|
•
Built In
Axle Camber (Camber Reduces
Tire Wear) |
|
•
LED Lighting
on Rear and Sides |
|
•
License
Plate Holder & Light |
|
• ST/235/85
R16 Load Range "G" Tires
(4400lbs) |
|
•
Paint:
Safety Yellow (Other Colors
Available to Match your Vehicle or Company Colors) |
|
Options: |
|
• Front Mounted Spool
Holder (Strand/Tracer Wire Holder) |
$250.00 |
|
• 12V Electric Hydraulic
Pump Enclosed Enclosed in Tongue Mounted Storage Box |
$500.00 |
|
• Tongue Mounted Storage
Box |
$250.00 |
|
• Spare Tire/Wheel
Assembly
(ST/235/85/R16 - Load Range "G") |
$195.00 |
|
•
Additional Spindle Bar
with Locks
|
$149.95 |
|
|
|
|
|
| |
10,000lbs Hydraulic
Lift Reel Trailer |
$9,995.00 |
|
|
STANDARD FEATURES: |
|
• Open Reel Access in Rear for
Easy Access, Easy Loading & Low Center of Gravity |
|
• Solid 2-1/2” Spindle Bar with
Centering Locks (10,000lbs Rated) |
|
• Reel Locations Centered
Forward of Wheels for Proper Tongue Weight & Easy Loading |
|
• Multi-Pocket Spindle Bar
Hydraulically Adjusts a Variety of Reel Diameters Up to 120” &
66” Wide |
|
• Adjustable Height 3” Pintle
Ring |
|
• H.D. 16K Safety Chains |
|
• 7-Pin Electrical Plug |
|
• Top-Wind 10,000lb Tongue Jack |
|
• Dual Manual Hydraulic
Pumps/Tank Assy & Lift Rams (For uneven terrain adjustment) |
|
• 10,000 Capacity Axle Spindles,
Hubs, Wheel Bearings, Tires |
|
• 12” x 3.5" Electric Brakes (Includes
Safety Breakaway Switch) |
|
• H.D. Steel Diamond Tread
Fenders |
|
•
1/4" Steel Main
Frame |
|
•
Built In
Axle Camber (Camber Reduces
Tire Wear) |
|
•
LED Lighting
on Rear and Sides |
|
•
License
Plate Holder & Light |
|
• ST/235/85
R17.5 Load Range "H" Tires
(6008lbs) |
|
•
Paint:
Safety Yellow (Other Colors
Available to Match your Vehicle or Company Colors) |
|
Options: |
|
• Front Mounted Spool
Holder (Strand/Tracer Wire Holder) |
$250.00 |
|
• 12V Electric Hydraulic
Pump Enclosed Enclosed in Tongue Mounted Storage Box |
$500.00 |
|
• Tongue Mounted Storage
Box |
$250.00 |
|
• Spare Tire/Wheel
Assembly
(ST/235/85/R17.5 - Load Range "H" 6008lbs) |
$325.00 |
|
•
Additional 2-1/2" Solid Spindle Bar
with Locks |
$149.95 |
|
|
|
